If you sell clutch parts, you must often be asked by customers: How do the clutch master cylinder and clutch slave cylinder differ? Many customers mix them up. By learning the clear differences, you can explain with confidence and build more trust with your clients.
The clutch master cylinder is located near the clutch pedal. It creates hydraulic pressure when the pedal is pressed. The clutch slave cylinder is located near the transmission. It receives that pressure and pushes the clutch mechanism to disengage or engage. The master is the “power source,” while the slave is the “executor.” Both are essential.

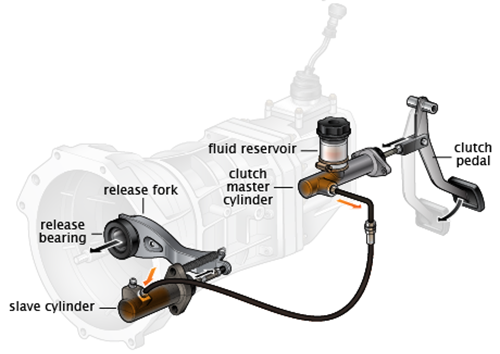

Clutch Slave Cylinder vs Master Cylinder
Now let’s gradually understand them from their location, working principle, internal design, cost, maintenance, and how to communicate with customers.
Master vs Slave Cylinder: Definition and Location
The easiest way to tell them apart is by location.
Clutch Master Cylinder
The master cylinder is mounted near the clutch pedal, inside the engine bay. It’s the starting point of the clutch hydraulic system. Every time a driver presses the clutch pedal, the master cylinder pushes fluid into the system. Without it, the clutch pedal would feel loose, and the car couldn’t build the pressure needed to shift gears.
Clutch Slave Cylinder
The slave cylinder is located near the transmission or clutch housing. Its job is to receive the hydraulic fluid pressure sent by the master. Once that pressure arrives, the slave cylinder physically moves the clutch fork or release bearing, allowing the clutch to disengage. Because it works directly on the clutch mechanism, its position is always close to the gearbox.
In short: The master is at the pedal, the slave is at the gearbox. One begins the process, the other finishes it.
How Master and Slave Cylinders Work
To understand how they work, let’s imagine how a driver changes gears.
- How the Master Cylinder Works
When the driver presses the clutch pedal, the master cylinder works like a small pump. Inside it, there is a piston that pushes brake fluid (actually clutch fluid, but usually the same DOT brake fluid). The pressure then travels through a hydraulic line toward the slave cylinder.
It also contains a small reservoir that stores extra fluid to keep the system full. - How the Slave Cylinder Works
The slave cylinder is much simpler. It is basically a piston in a housing. When fluid pressure arrives, the piston extends. This movement directly pushes the clutch fork or release bearing, separating the clutch from the flywheel so gears can shift smoothly. - Internal Structure Difference
The master cylinder has more parts: a piston, seals, and a fluid reservoir. The slave cylinder is smaller, usually just a piston and seal. Because of this, master cylinders can fail due to internal seal wear, while slave cylinders often fail due to external leaks.
Think of it like this: The master cylinder is the “brain and heart” of the clutch hydraulic system, while the slave cylinder is the “hand” that acts.
Cost Difference and Replacement Options
Customers often ask about cost. Knowing the price ranges will help you explain better.
- Clutch Master Cylinder Cost
The part itself is usually between $50 and $150, depending on the car. Labor cost adds more, since replacing it involves working in the engine bay.
For businesses buying wholesale from suppliers like GDST, the cost can drop to just $4–$10, making it far cheaper to stock. - Clutch Slave Cylinder Cost
The slave cylinder normally ranges from $60 to $200. Labor varies: external slaves are cheaper to replace, while concentric ones cost more because the gearbox must be removed.
Wholesale options also exist, with GDST offering prices as low as $3–$6, which helps shops keep margins higher. - Replacing Both Together
Many mechanics recommend replacing both at the same time. Because wholesale costs are so affordable, it’s easy to recommend changing both parts at once, and customers won’t feel they’re spending too much.
Maintenance Tips: Replace Both Together
This part is crucial for effective customer communication.
Both cylinders share the same hydraulic fluid. They also work every time the clutch pedal is pressed. This means their lifespans are often similar.
- If the master cylinder fails, the slave may already be worn.
- If the slave leaks, the master may soon lose pressure, too.
- Replacing only one can lead to the other failing shortly after, frustrating both the mechanic and the customer.
That’s why it’s often wise to recommend a pair replacement. It saves money in the long run and avoids unhappy returns.
Explaining Master vs Slave Cylinder to Customers
Explaining technical parts can confuse customers. The key is to use simple comparisons.
- Use Analogies
Tell them: “The master cylinder is like your brain sending a signal, and the slave cylinder is like your hand carrying out the job.” Most people will get it immediately. - Keep It Short
Instead of saying “hydraulic piston assembly,” just say “the master makes the pressure, the slave uses it.” Customers don’t need engineering terms; they need clarity. - Handle Objections
If a customer asks, “Why do I need both replaced?” explain that they share the same fluid and usually wear out together. Replacing both avoids paying double labor later.
Simple, friendly language makes you look professional without overwhelming the customer.
Conclusion
A comparison between the clutch master cylinder and the clutch slave cylinder makes the difference between them clear at a glance. The master cylinder creates hydraulic pressure near the pedal. The slave cylinder receives that pressure at the gearbox and moves the clutch. The master is the source, the slave is the action.
Understanding this comparison not only helps you explain your service confidently to customers but also makes it sound more professional. When customers feel you explain things clearly and honestly, they are more likely to trust your advice and choose your service.
