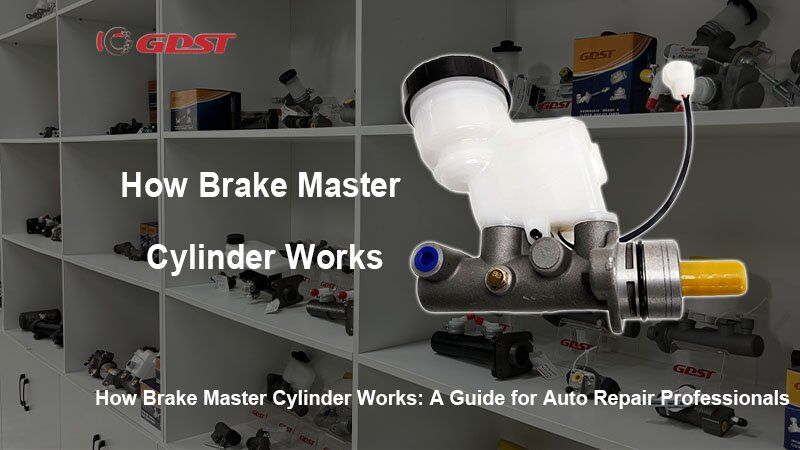

How Brake Master Cylinder Works: A Guide for Auto Repair Professionals

How Brake Master Cylinder Works
Table of Contents
    Add a header to begin generating the table of contents

    Regarding braking systems, the brake master cylinder is a key component. For those in auto repair and parts distribution, understanding how brake master cylinder works helps build customer confidence and ensures accurate explanations.

    The brake master cylinder converts foot pressure on the brake pedal into hydraulic force, pushing brake fluid through the lines to activate braking components at each wheel, which slows down and stops the vehicle.

    This article provides a clear, approachable breakdown of how the brake master cylinder functions, signs it may need replacing, and key details that every repair professional should know.

    What is a Brake Master Cylinder?

    brake master cylinder

    The brake master cylinder is an important part of the hydraulic braking system in vehicles.

    It acts as the heart of the braking system, converting the force from pressing the brake pedal into hydraulic pressure.

    This pressure is what pushes brake fluid through the brake lines to the wheels, where it engages the brakes to stop the vehicle.

    In simpler terms, the master cylinder transforms mechanical energy (your foot pressing the brake pedal) into hydraulic energy, which activates the brakes.

    Components of a Brake Master Cylinder

    Components of a Brake Master Cylinder

    A brake master cylinder consists of several key parts:

    • Cylinder Body: Houses the entire system.
    • Piston: Moves within the cylinder to create pressure.
    • Brake Fluid Reservoir: Holds brake fluid, which is essential for hydraulic braking.
    • Brake Lines: Connect to the cylinder and carry fluid to the brake calipers or drums at each wheel.

    Knowing the anatomy of the master cylinder helps repair professionals better explain this part to customers and troubleshoot issues that may arise.

    Where is the Brake Master Cylinder Located?

    Where is the Brake Master Cylinder Located

    In most vehicles, the brake master cylinder is located near the engine compartment, usually on the driver’s side.

    It’s mounted to the brake booster, a component that increases the force applied to the brakes.

    When looking for the master cylinder, you’ll typically see a small metal or plastic reservoir attached to it.

    How to Identify It

    • Near the Brake Pedal Mechanism: In most cars, the cylinder is attached to the firewall, with a reservoir that holds brake fluid.
    • Linked to the Brake Booster: The brake booster is a circular component connected to the cylinder; this booster increases the braking force.

    What Does the Brake Master Cylinder Do?

    What Does the Brake Master Cylinder Do

    The brake master cylinder’s job is to apply hydraulic pressure to the brakes, transferring the force you exert on the brake pedal through a series of steps to the braking mechanisms on each wheel.

    How It Works Step-by-Step

    1. When you press down on the brake pedal, it pushes a rod that enters the master cylinder.
    2. This movement activates the piston inside the master cylinder, which creates pressure.
    3. As the piston moves, it compresses brake fluid in the cylinder, generating hydraulic pressure.
    4. The brake lines carry the pressurized fluid to each wheel, engaging the brakes.
    5. The pressure causes the brake calipers (in disc brakes) or brake wheel cylinders (in drum brakes) to engage, slowing the vehicle.

    When to Replace the Brake Master Cylinder?

    When to Replace the Brake Master Cylinder

    A worn or failing brake master cylinder can compromise the entire braking system, so knowing when it’s time for a replacement is crucial for safety.

    Signs of a Bad Master Cylinder

    • Soft or Sinking Brake Pedal: A mushy or slowly sinking brake pedal can indicate a loss of pressure, often due to internal leaking in the cylinder.
    • Brake Fluid Leaks: Fluid leaks around the cylinder or a continually low fluid reservoir can signal cylinder wear.
    • Uneven Braking: A faulty master cylinder may lead to inconsistent or uneven braking.
    • Contaminated Brake Fluid: Over time, seals inside the cylinder can wear out, allowing debris or rust into the fluid.

    When any of these signs appear, replacing the master cylinder is essential for maintaining a safe braking system.

    Technicians should always conduct a thorough inspection to confirm cylinder issues and determine if other parts, like brake lines, also need attention.

    Importance of Regular Maintenance

    For repair shops, advising customers to check brake fluid levels regularly is a simple but effective maintenance tip.

    Regular checking can help extend the lifespan of the brake master cylinder and the whole brake system.
