If your customers complain about a soft clutch pedal or trouble shifting gears, it’s likely that the clutch slave cylinder needs attention. Testing it might sound simple, until you realize a missed step can lead to a misdiagnosis. This guide walks you through exactly how to test a clutch slave cylinder the right way — confidently and professionally.
To test a clutch slave cylinder, begin with a visual check for leaks. Then press the clutch pedal to feel for sponginess or abnormal resistance. Use a bleed test to assess fluid pressure and observe piston movement. If removed, apply compressed air to the slave and confirm smooth piston extension. Replace if leaking or unresponsive.

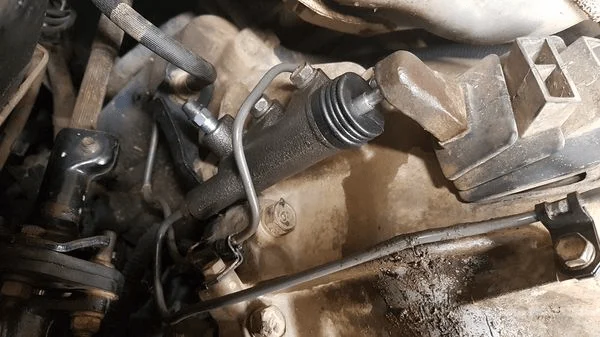

Test Preparation for Clutch Slave Cylinder
Before you even start testing, make sure you’re set up for success. This isn’t just about safety — it’s about diagnosing without creating more problems.
Safety Precautions
- Only test on a cool vehicle. Heat can increase pressure in the system and spray fluid.
- Always wear gloves and goggles. Clutch fluid is highly corrosive.
- Use wheel chocks and engage the handbrake before working under the car.
- Never place fingers near a slave piston while pressurized — serious injury risk.
Essential Tools
- DOT-approved brake fluid (must match manufacturer spec — DOT3/4/5.1)
- Bleed the hose and catch the bottle
- Flare nut wrench or a suitable open wrench
- Clean rags and a flashlight
- Compressed air (for bench testing)
- Optional: mirror for tight spaces
How to Test a Clutch Slave Cylinder?
Understanding how to test a clutch slave cylinder correctly means going beyond just pumping the pedal and hoping to feel something odd. Here’s how a professional should approach it — step by step.
Step 1: External Visual Inspection
Start with a thorough inspection of the clutch master and slave cylinders:
- Take a close look at the slave cylinder and the rubber boot around it. If you see any wet spots or signs of fluid, it usually means the cylinder is leaking inside.
- Inspect the master cylinder near the firewall and around the pedal linkage.
- Look under the car for fluid drips or clutch dust build-up mixed with moisture.
Any visible fluid indicates internal seal failure and demands immediate replacement.
Step 2: Pedal Pressure Consistency Test
With the engine off, slowly press the clutch pedal several times.
- A firm, consistent resistance is a good sign.
- A soft, spongy pedal or one that drops to the floor and stays there is a red flag.
If the pedal feels improved with repeated pumps, you’re likely dealing with air in the system or a leaking cylinder unable to hold pressure.
Step 3: Fluid Reservoir Inspection
Pop the clutch reservoir cap and check:
- Fluid level: Should be near max. If low, there’s likely a leak.
- Fluid color: Should be clear or slightly yellow. Dark or cloudy fluid = contamination, a sign of worn seals or moisture.
This step is often skipped, but the fluid condition tells you how the system has aged.
Step 4: Open-Circuit Bleed Test
Hook up a clear bleed hose and have an assistant press the clutch pedal down and hold it.
- Crack open the slave cylinder’s bleed valve.
- Strong, steady flow = healthy master cylinder.
- Weak dribble or air bubbles = the master may not be building pressure properly, or air is trapped inside.
Be sure to close the valve before releasing the pedal — otherwise, air gets sucked back in.
Step 5: Active Movement Test
While bleeding, watch the slave cylinder piston. If it’s external, you should see it extend as pressure builds.
- Smooth piston travel = good.
- Jumpy, partial, or no movement = likely a bad slave or major fluid restriction.
For concentric (internal) slave cylinders, this step requires transmission removal and may not be practical unless you’re doing a clutch job.
Step 6: Bench Test (Off-Vehicle)
If the slave cylinder is removed:
- Secure it gently in a bench vice.
- Apply light compressed air through the fluid port.
The piston should extend smoothly and return under spring pressure.
- If the piston sticks, leaks, or doesn’t move, the internal seals are worn or swollen.
Note: Always keep your fingers away from the piston during this test — pressure can eject it quickly.
Step 7: Pushrod Free Play Check
Return to the master cylinder. At the pushrod (linked to the clutch pedal), you should feel 2–3mm of free movement before resistance kicks in.
- Too much free play = the master isn’t engaging the piston early enough.
- Too little or none = clutch may stay partially engaged, leading to wear or poor disengagement.
Use a feeler gauge or small ruler to confirm this gap if unsure.

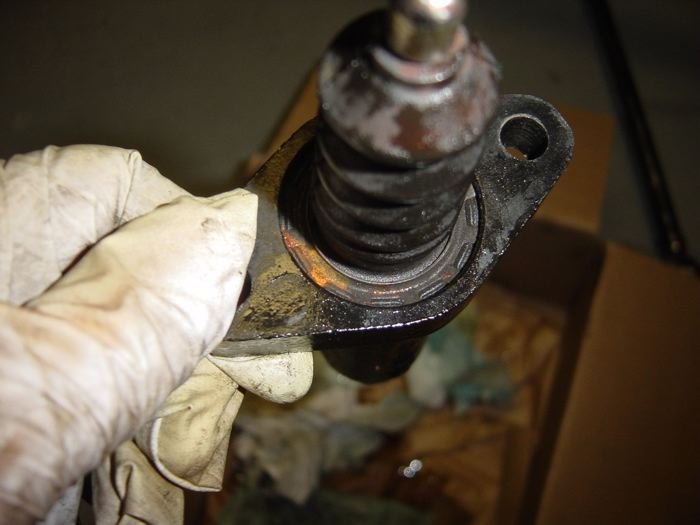

Clutch Slave Cylinder Mistakes and Pro Tips
Even seasoned techs get caught by basic errors. Here’s what you need to avoid — and what to always remember.
Common Pitfalls
- Mixing brake fluid types (DOT3, DOT4, DOT5.1) can destroy internal seals — never top up blindly.
- Bleeding without cleaning the bleed screw area first introduces grit into the system.
- Ignoring free play in the pushrod causes false feedback during pedal tests.
Quick Pro Tips
- On older cars, replace the master and slave together — they often fail within months of each other.
- Always use OEM-specified brake fluid — wrong fluid equals slow failure.
- After bleeding, let the vehicle sit for 2 hours — trapped air may rise and affect the final pedal feel.
Budget-Smart Advice
- For external slave cylinders, you can often just replace the seal kit if the housing is good, saving up to 60%.
- For concentric slaves, always replace the entire unit. Labor is too high to risk a partial fix.
Learning how to test a clutch slave cylinder is more than a checklist — it’s about understanding the behavior of hydraulic pressure, pedal mechanics, and fluid response. Stick to each step, watch closely, and replace only when the evidence is clear. That’s how you build real trust with your customers — and avoid costly callbacks.
