Your customer’s clutch pedal feels strange—soft, spongy, or it drops straight to the floor. You know something’s off. Before replacing parts or guessing blindly, testing the clutch master cylinder should be your first step. Here’s how to do it, by hand, the right way.
To test a clutch master cylinder by hand, first check for fluid leaks and the pedal’s resistance. Then remove the output line, block it off, and press the clutch pedal. If the pedal holds firm, the master cylinder is likely functional. If it drops or stays soft, it’s likely faulty.
How to Test Clutch Master Cylinder by Hand?
Step 1: Preparation and Tools You’ll Need
Before jumping into the job, take a few simple but important precautions:
- Turn the engine off and disconnect the battery to avoid any electrical issues while working.
- Park the vehicle on level ground and pull the handbrake.
- Wear gloves and eye protection. Brake fluid is corrosive and dangerous to skin and eyes.
- Place old rags or a drain tray beneath the clutch master cylinder to catch any leaking fluid.
Taking five minutes to prepare can save you hours of cleanup or injury.
Here’s a short list of basic tools for this job:
- A set of wrenches (usually 10mm or 12mm)
- DOT 3 or DOT 4 brake fluid
- A clean plastic bottle or container
- Rubber plug or finger to seal the output port
- Clean rags or paper towels
- Flashlight (to inspect for leaks in tight spaces)
Step 2: Check Fluid Level and Look for Leaks
Pop the hood and locate the clutch master cylinder—usually beside the brake master cylinder. Check the reservoir; fluid should sit between the “MIN” and “MAX” marks. If it’s low, inspect around the reservoir, hoses, and cylinder body for leaks. Watch for wet spots, oily residue, or dirt sticking to the fluid. Also, check under the dash for leaks near the clutch pedal, which may point to internal seal failure. Any fluid loss suggests the master cylinder may be compromised.
Step 3: Press the Clutch Pedal and Observe the Feel
Press the clutch pedal several times and feel the response. A good master cylinder should offer steady resistance and snap back smoothly. If the pedal feels soft, sinks slowly, or returns sluggishly, the internal seals may be leaking.
With the reservoir cap off, check for fluid spurting upward when pressing the pedal—this can signal a failed seal. Next, locate the small return port inside the reservoir. Use a fine wire to gently clear any blockage. A clogged port can cause slow pedal return and pressure buildup.
Step 4: Disconnect the Output Line and Perform Pressure Test

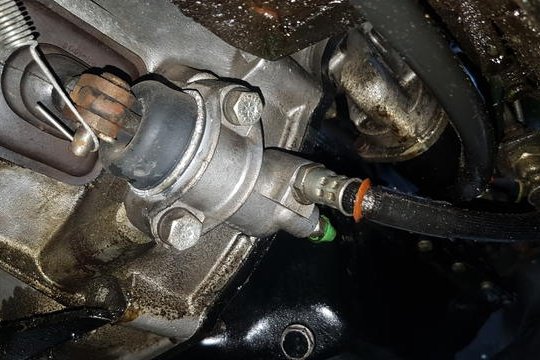

- Locate the outlet line going to the slave cylinder.
- Use a wrench to carefully disconnect it.
- Block the output line using your finger, a vacuum cap, or a plastic plug.
Press the clutch pedal:
- If pressure builds and the pedal stiffens, the master cylinder is likely okay.
- If the pedal stays soft or sinks to the floor, the master cylinder is likely leaking internally and failing to build pressure.
Step 5: Press the Clutch Pedal Again
With the hydraulic line blocked off using a vacuum cap, rubber plug, or even your thumb (if safe and clean), press the clutch pedal slowly and steadily. If the pedal firms up quickly and holds its position, this means the master cylinder is capable of building and maintaining pressure, so the issue likely lies further downstream, such as in the slave cylinder, clutch line, or air in the system.
But if the pedal still feels soft, sinks gradually to the floor, or doesn’t resist at all, then it’s a clear sign that the master cylinder is internally bypassing fluid. This usually points to worn seals or a damaged piston that fails to compress the fluid effectively.
Step 6: Optional Inspection for Blockage
If pressure feels inconsistent or if the pedal doesn’t return smoothly, there could be a blockage inside the return (compensation) port. This tiny hole allows brake fluid to flow back into the reservoir when the pedal is released.
To inspect it:
- Remove the reservoir cap and locate the small return port near the pushrod area.
- Use a thin pin, wire, or paperclip to probe the hole gently.
- Be careful not to scratch the metal or damage any rubber seals.
- If it’s clogged, apply brake cleaner (safe for hydraulic systems) to flush it out.
A blocked return port can lead to pressure buildup, a stiff pedal, or slow return, and may even mimic a failing master cylinder. Cleaning this port is a simple but often overlooked fix.
How to Fix a Clutch Master Cylinder
If testing confirms that the master cylinder is defective, you have only two options: repair or replace.
Minor Issues
- Leaks around seals: Try replacing O-rings or seals.
- Return port clogged: Flush out the system with brake cleaner and compressed air.
- Soft pedal due to air: Bleed the system to remove air bubbles.
Major Issues
- Internal corrosion or severe pitting: Not repairable—replace the entire unit.
- Worn piston or cylinder bore: Replace to avoid recurring issues.
Pro tip: Always match replacement seals to OEM specs. Aftermarket kits can differ slightly and lead to premature failures.
Knowing how to test a clutch master cylinder by hand gives you a major edge as a pro. It helps you diagnose faster, avoid misdiagnosis, and build customer trust. Got experience or tips of your own? Drop them in the comments—we’re all here to grow together.
