How Do You Check Clutch Master Cylinder Fluid Level?

How Do You Check Clutch Master Cylinder Fluid Level

If you’ve ever had a customer walk in complaining about stiff gear changes or a soft clutch pedal, chances are the clutch master cylinder fluid level is involved. And while it’s a small part of the hydraulic system, ignoring it can lead to bigger problems. So let’s break it down — clearly, simply, and professionally — so you can guide your team or your customers like a pro.

To check the clutch master cylinder fluid level, first locate the reservoir near the brake master cylinder, usually on the driver’s side firewall. Make sure the car is on level ground, then inspect the fluid through the translucent container. The level should be between the MIN and MAX lines. If it’s low, top off with DOT 3 or DOT 4 brake fluid, and avoid contamination.

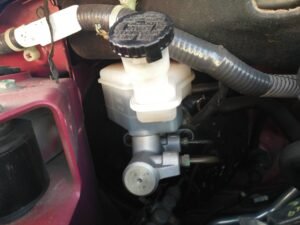

Where is the Clutch Master Cylinder Fluid Located?

The clutch fluid reservoir is usually tucked away near the brake master cylinder, right along the firewall on the driver’s side of the engine bay. It’s a small plastic container, often semi-transparent, with markings labeled “MIN” and “MAX.” Depending on the vehicle, the cap might say “clutch” or just “brake fluid,” especially in cars where both systems share a reservoir.

Not all cars are built the same. Some have a separate reservoir just for the clutch, while others share with the brakes. Either way, this is where you’ll check the fluid level. Shine a flashlight if needed — some reservoirs are hard to see in dim engine bays.

How Do You Check Clutch Master Cylinder Fluid Level?

If you want to check the clutch master cylinder fluid level accurately, you need more than a quick peek — you need to know what you’re looking for, and what the results mean. Here’s a step-by-step breakdown you can follow or pass on to your customers.

What you’ll need:

  • A clean, lint-free cloth
  • A flashlight (optional)
  • Use the correct type of brake fluid (usually DOT 3 or DOT 4)

Step-by-step procedure:

  1. Park the vehicle safely
    Make sure the car is on a level surface, engine turned off, and parking brake engaged. If the engine’s been running, let it cool for a few minutes.
  2. Open the hood and locate the reservoir
    Look at the back of the engine bay, near the brake master cylinder. The clutch fluid reservoir is a small translucent plastic container, often with a black or gray screw cap. It may say “Clutch” or “Brake” — in many cars, it shares the reservoir with the brakes.
  3. Check the fluid level from the outside
    Before opening the cap, inspect the reservoir wall. You should see the fluid sitting between the MIN and MAX lines. If it’s below the MIN line or hard to see at all, it’s too low.
  4. Inspect the fluid condition (optional but recommended)
    If the level is low or you suspect contamination, go ahead and unscrew the reservoir cap carefully.
  • Look at the color: Clean clutch fluid is clear to light amber.
  • If it’s dark brown, black, or murky, it’s old or contaminated.
  • Avoid touching the fluid directly — brake fluid is corrosive to paint and skin.
  1. Check for signs of leaks
    If the fluid is low, the next step is to inspect the system for leaks:
  • Look around the base of the master cylinder.
  • Check the clutch pedal area inside the cabin (sometimes fluid leaks down the pedal).
  • Inspect lines running from the reservoir to the slave cylinder.

Even minor leaks can cause big performance issues over time, especially in cold weather or under load.

Common mistake to avoid:

Do not overfill the reservoir. Going past the MAX line can cause pressure build-up and fluid spillage when the engine heats up. Always fill just below the MAX mark.

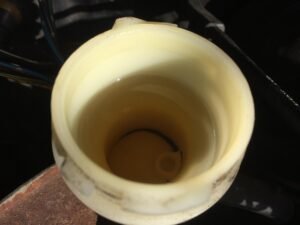

What Does Clutch Fluid Look Like When Low?

When the fluid is low, it can be obvious — the level will be below the MIN mark, sometimes barely visible. But visually, low fluid can also show symptoms like:

  • A dark or murky color, almost like old engine oil
  • Tiny air bubbles in the reservoir
  • Fluid that smells burnt or “off”

These are signs that the fluid’s not just low — it’s likely contaminated or has absorbed moisture. Either way, the system is no longer performing at its best.

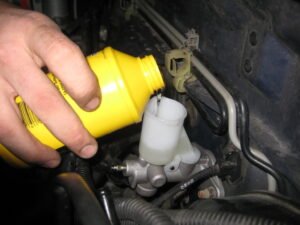

How To Refill Clutch Fluid Properly

Topping up the clutch fluid is simple, but that doesn’t mean it should be rushed. A careless top-off can introduce air or dirt, which creates more problems than it solves.

Step-by-step clutch fluid refill:

  1. Wipe the reservoir cap area with a clean rag. You don’t want dust or dirt falling in when you open it.
  2. Open the cap slowly, especially if the system is warm.
  3. Pour the correct brake fluid (DOT 3 or DOT 4 — check the cap or manual) slowly into the reservoir.
  4. Stop once the level reaches just below the MAX line.
  5. Close the cap tightly, making sure the seal is clean.
  6. Press the clutch pedal a few times. It should feel firmer and more responsive.
  7. Double-check for leaks. If fluid continues to drop, it’s time to inspect the master or slave cylinder.

Pro tip: Always use fresh brake fluid from a sealed container. Prolonged contact between brake fluid and moisture in the air reduces energy efficiency.

Knowing how to check the clutch master cylinder fluid level might seem like a small skill, but in the world of automotive service, it’s a detail that separates average service from great service. If you’re in the clutch business, showing customers how to do this (or doing it for them during a checkup) builds trust, avoids bigger repairs, and keeps vehicles running smoothly.
